Video Key Frame Grabber

Advanced video processing workflow that extracts key frames, generates thumbnails, creates vector embeddings, and stores them in a vector database for similarity search and analysis

Tutorial Video

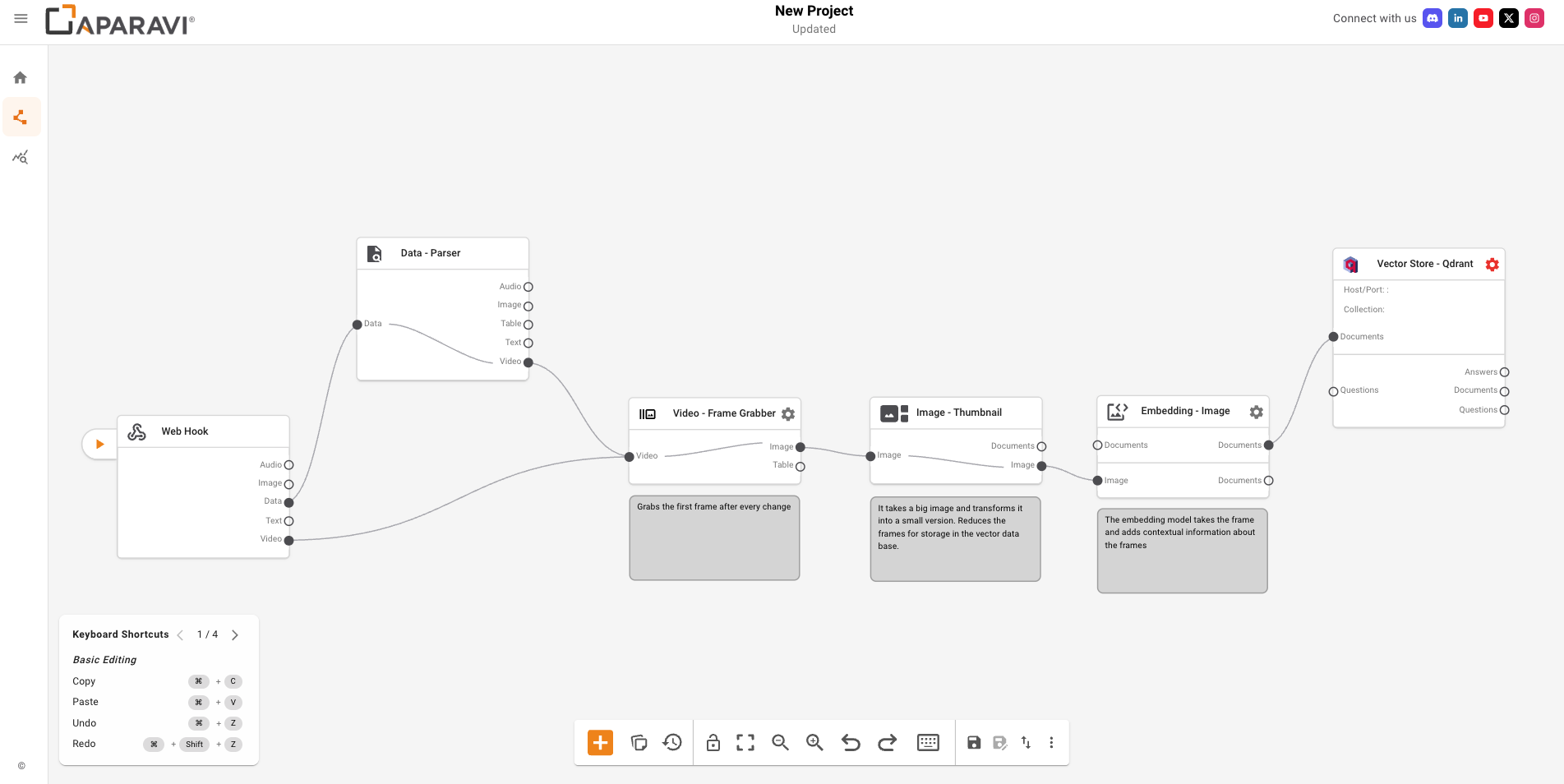

Pipeline

Pipeline Components

🌐 Web Hook

Receives uploaded video files via HTTP

πŸ“„ Data – Parser

Extracts video content from various file formats

🎬 Video – Frame Grabber

Extracts key frames at specified intervals or scene transitions

πŸ–ΌοΈ Image – Thumbnail

Generates optimized thumbnail images

πŸ” Embedding – Image

Creates vector embeddings from images using AI models

πŸ“Š Vector Store – Qdrant

Stores and retrieves vector embeddings for similarity search

How to Use the Pipeline

Start the Pipeline

  1. Log into Aparavi and create a new project
  2. Run your pipeline in the Aparavi Engine
  3. Look for the Webhook URL message in the Project Log
  4. Copy the webhook URL (e.g., http://localhost:8080/webhook/...)

Configure API Testing Tool

We recommend using Talend API Tester for easy testing:

Set Up the Request

Request Configuration

Field Value Description
Method PUT HTTP method for file upload
URL Your webhook URL The URL from Step 1
Content-Type Auto Automatically set based on file type
Authorization Your API key Found in the webhook URL parameters

Body Configuration

  • Type: File
  • Upload Method: Drag & drop or click to browse
  • Supported Formats: MP4, AVI, MOV, MKV, WebM, and more

Send and Process

  1. Upload your video file to the request body
  2. Click “Send” to submit the request
  3. Wait for processing (typically 30-120 seconds depending on video length)
  4. Check response status:
    βœ… 200 OK
    Success
    ❌ Error codes
    Check file format and size

Component Details

1. Web Hook Connector

Purpose: Receives HTTP video file uploads and triggers pipeline processing

Configuration:

  • Protocol: webhook://
  • Class Type: source
  • Capabilities: noinclude
  • Register: endpoint

Supported Input Types: tags, text, audio, video, image

2. Data – Parser Connector

Purpose: Extracts structured video content from uploaded files for downstream processing

Configuration:

  • Protocol: parse://
  • Class Type: data
  • Register: filter

Supported Input/Output:

  • Input: tags
  • Output: text, table, image, video, audio

3. Video – Frame Grabber Connector

Purpose: Extracts frames from video files at specified intervals, scene transitions, or keyframes

Configuration:

  • Protocol: frame_grabber://
  • Class Type: video
  • Register: filter

Frame Extraction Modes

Mode Description Use Case
Interval Extract frames at regular time intervals Consistent sampling
Transition Extract frames at scene changes Content analysis
Keyframe Extract frames at video keyframes Compression analysis

Configuration Options

Setting Default Description Effect
Percentage Change for Frame 40% Scene transition threshold Lower = more frames at smaller changes
Interval Between Frames 5 seconds Time between extractions Controls frame frequency
Start Time 0 seconds Beginning of extraction Skips initial video portion
Duration 0 seconds Extraction duration Limits processing to segment
Maximum Number of Frames 0 (unlimited) Frame limit Stops after reaching limit

4. Image – Thumbnail Connector

Purpose: Generates small, representative thumbnail images from larger image files

Configuration:

  • Protocol: thumbnail://
  • Class Type: image
  • Register: filter

Features:

  • Aspect Ratio Preservation: Maintains original image proportions
  • Optimization: Reduces file size while maintaining quality
  • Quick Preview: Enables fast visual browsing
  • Storage Efficiency: Reduces storage requirements

5. Embedding – Image Connector

Purpose: Generates vector embeddings from image content using advanced computer vision models

Configuration:

  • Protocol: embedding_image://
  • Class Type: embedding
  • Capabilities: gpu
  • Register: filter

Model Options

Model Performance Memory Usage Use Case
OpenAI – 16×16 Good Lower General purpose (Default)
OpenAI – 32×32 Lower Better recognition High accuracy needed
Google – 16×16 Fast, accurate General-purpose Balanced performance
Custom Model Variable Variable Hugging Face models

6. Vector Store – Qdrant Connector

Purpose: Stores and retrieves vector embeddings for similarity search

Configuration:

  • Protocol: qdrant://
  • Class Type: store
  • Register: filter

Host Configuration

Type Description Use Case
Local Your own Qdrant server Development, private deployment
Cloud Qdrant Cloud instance Production, managed service

Configuration Examples

Interval-based Frame Extraction

Mode: Interval
Interval: 5 seconds
Start Time: 0 seconds
Duration: 0 (entire video)
Max Frames: 0 (unlimited)

Scene Transition-based Extraction

Mode: Transition
Percentage Change: 40%
Start Time: 0 seconds
Duration: 0 (entire video)
Max Frames: 100

Keyframe-based Extraction

Mode: Keyframe
Start Time: 0 seconds
Duration: 0 (entire video)
Max Frames: 50

Supported Video Formats

🎬 Common Video Formats

  • MP4 (.mp4) – Most common, good compression
  • AVI (.avi) – Windows format, uncompressed
  • MOV (.mov) – Apple format, high quality
  • MKV (.mkv) – Open source, flexible
  • WebM (.webm) – Web-optimized
  • MPEG (.mpeg, .mpg) – Legacy format

πŸ“ File Size Recommendations

  • Optimal: 10-500 MB
  • Maximum: 2 GB
  • Processing Time: 30-300 seconds per file

⏱️ Video Length Considerations

  • Short Videos (1-5 minutes): 30-60 seconds processing
  • Medium Videos (5-15 minutes): 1-3 minutes processing
  • Long Videos (15+ minutes): 3-10 minutes processing

Output Format

Structured Response

The pipeline outputs multiple types of content:

1. Extracted Frames

Individual video frames as images

2. Thumbnails

Optimized thumbnail versions

3. Vector Embeddings

Numerical representations for similarity search

4. Metadata

Frame timing and extraction information

Example Output

{
  "data": {
    "objects": {
      "cce2fa78-f7fb-5a2e-b391-7c896aeda5cf": {
        "text": "FRAMES EXTRACTED:\n- Frame 1: 0.0 seconds\n- Frame 2: 5.0 seconds\n- Frame 3: 10.0 seconds\n\nTHUMBNAILS GENERATED:\n- thumbnail_1.jpg\n- thumbnail_2.jpg\n- thumbnail_3.jpg\n\nEMBEDDINGS CREATED:\n- Vector embeddings for similarity search\n\nSTORED IN QDRANT:\n- Collection: APARAVI\n- Host: localhost:6333"
      }
    }
  }
}

Error Handling

Common HTTP Status Codes

Code Meaning Solution
200 Success βœ… Processing completed
400 Bad Request Check file format and size
401 Unauthorized Verify API key
404 Not Found Check webhook URL
500 Server Error Restart pipeline

Troubleshooting Tips

  • File Size: Ensure files are under 2GB
  • Format: Use supported video formats
  • API Key: Verify authorization header
  • Pipeline: Ensure all components are running
  • Qdrant Connection: Check vector store configuration
  • Network: Check connectivity to webhook endpoint
  • GPU: Ensure GPU is available for image embedding models

Performance Considerations

Processing Times

Video Length File Size Estimated Time
1-5 minutes 10-100 MB 30-60 seconds
5-15 minutes 100-300 MB 1-3 minutes
15-30 minutes 300-500 MB 3-5 minutes
30+ minutes 500+ MB 5-10 minutes

Optimization Tips

    • Video Quality: Use appropriate resolution for your use case
    • Format Selection: Prefer MP4 for best compatibility
    • Size Management: Keep files under 500MB for optimal performance
    • Frame Extraction: Use appropriate intervals to balance detail vs. performance
